Shrink Sleeve Label Applicators

Print high resolution text and bar codes on cases, pallets, shrink wrap, boxes etc with an exceptional bar code read rates and accurate placement of the label onto the package

Perform label and ribbon changes in less than 60 seconds
Simple usability with self-adjusting label placement
Direct Apply labeling up to 150 packs per minute for typical 4”x6” labels

Chat with us

Labeling Machine for Cases, Shrink Wrap, Trays, Boxes, Pallet etc

Label Application Method

Direct Apply (standard) Other optional applicators: Telescopic tamp, Front of Pack, Rear of Corner Wrap

Ribbon Width

Minimum 53mm width (53mm, 76mm and 110mm standard width ribbons)/Up to 830m

Print Resolution & Print Speed

300dpi (200dpi in emulation mode). 1.6-19.7 inches/sec;Up to 150 packs/min with a 4”x6” label

Dates, Codes, Lot and Manufacturer Information

Direct Apply labeling for box applications that require shipping and tracking information, bar codes, best-by and more

Ideal for Coding Food & Beverage and other Packaged Goods

Prints and applies labels on fruit, vegetable and frozen food packs, beverage cases and other flat surfaces

Labels of various sizes on Multiple Package Types

Print lot, batch and supplier-specific information clearly on your cases. Create a traceability point visible to your warehouse, wholesaler and retailer

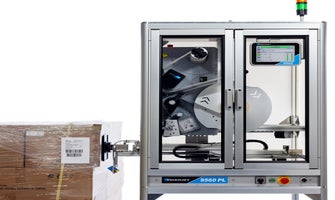

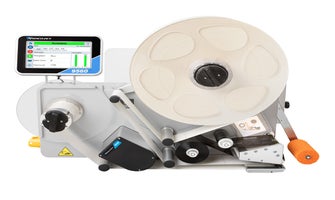

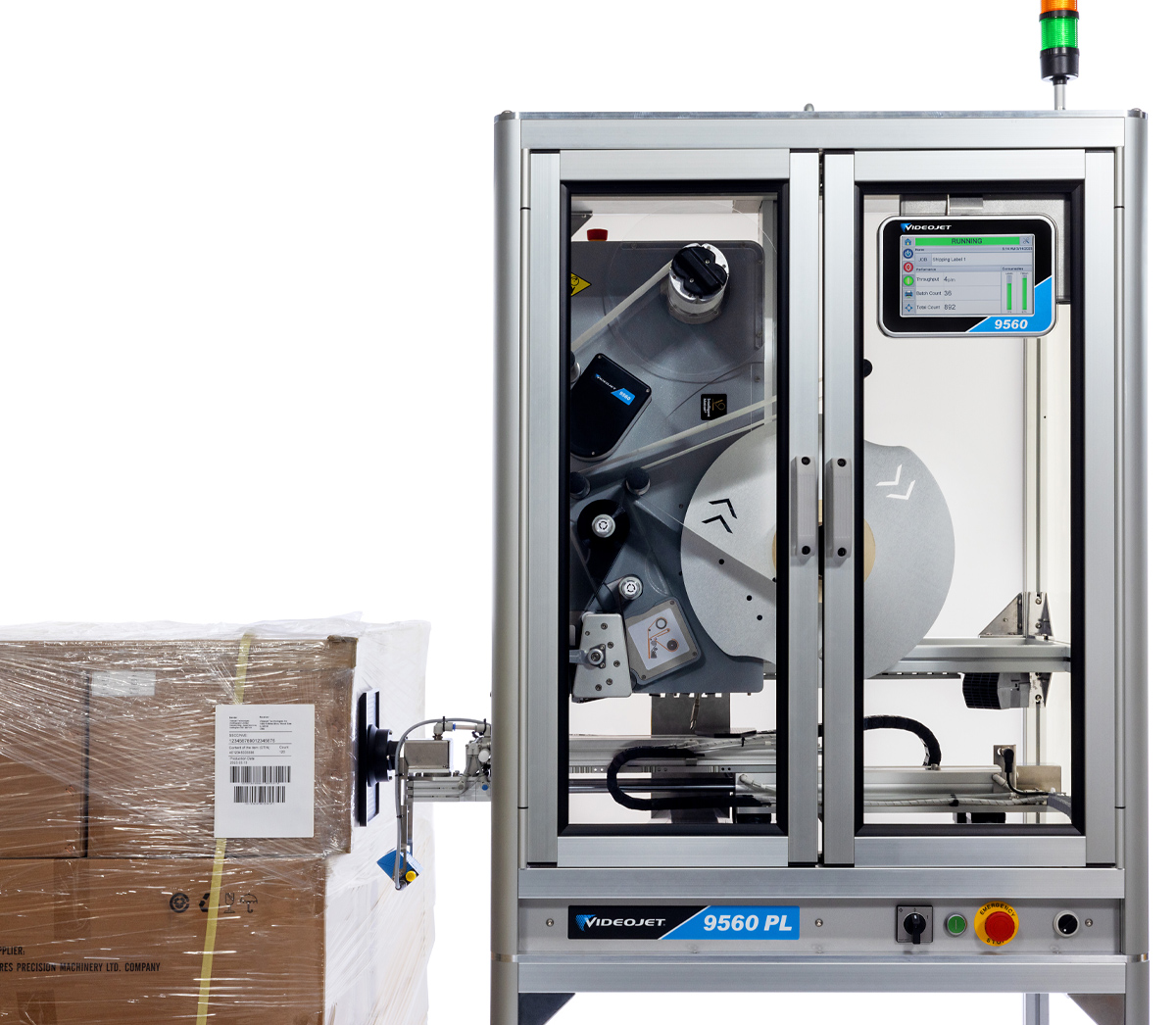

Videojet 9560

Direct Apply for mainstream top or side applications
Label Applicator that virtually eliminate label jams
Easy access for printhead cleaning and maintenance

Code Assurance

Minimize operator touches with on-board label database

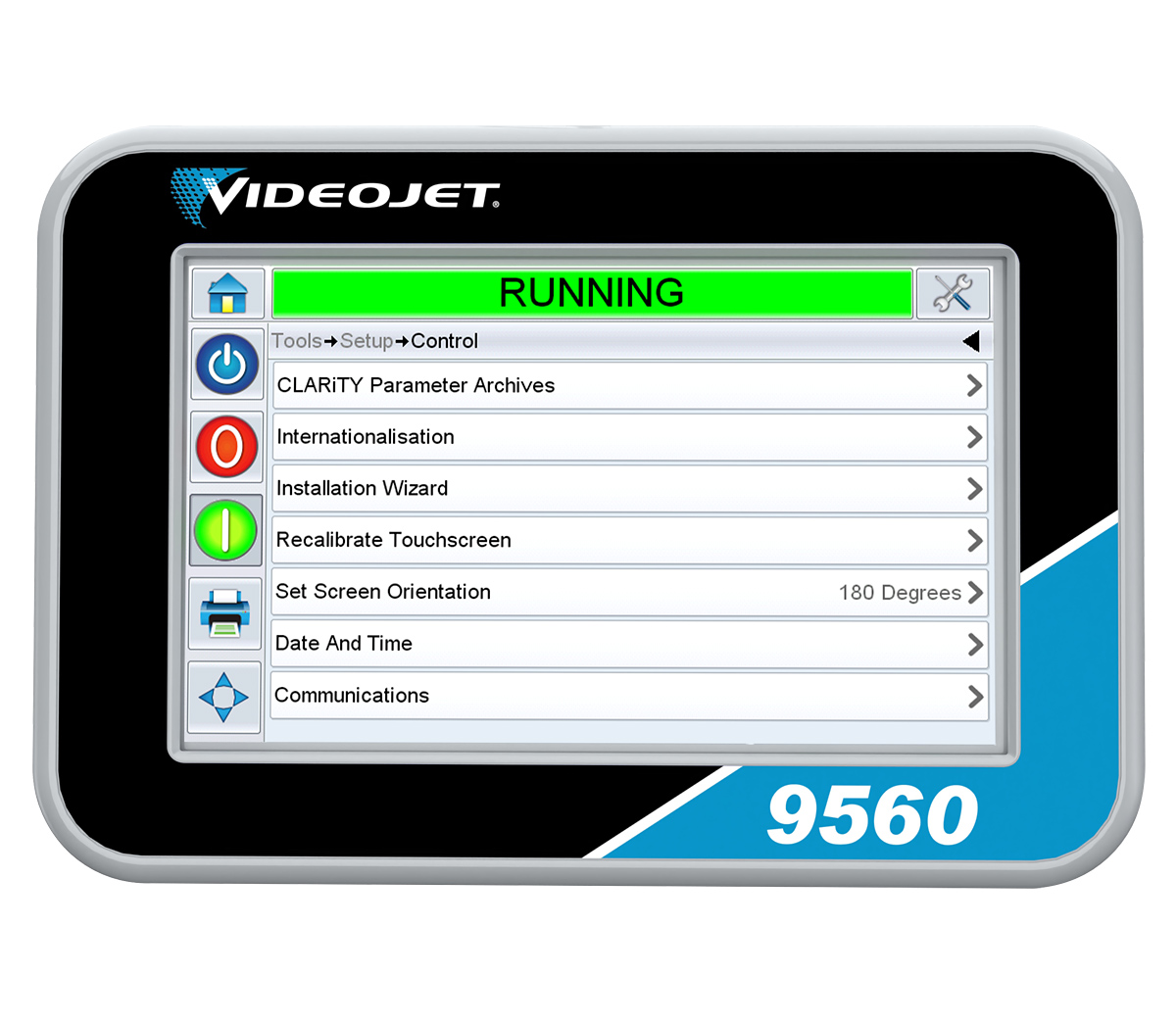

CLARiTY Controller with interactive on-board video tutorials
Automate barcode creation by linking data from multiple text fields

Label Specification

Width/length: 1.6” to 4.5” / 2.0” to 11.8”
Up to 150 packs per minute, based on label length and case size
Front of Pack, Tamp & Corner Wrap Applicator are available
